A1N-46 Ch=HS-744

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950355) Radio

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950357) Radio

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950358) Radio

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950359) Radio

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950360) Radio

A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950361) Radio
Use red slider bar for more.
A1N-46 Ch=HS-744; Motorola Inc. ex (ID = 950355) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner

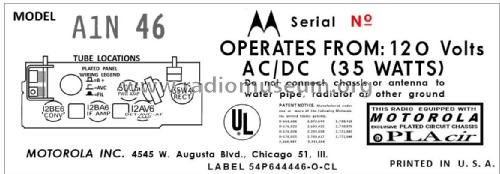

Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1N-46 Ch=HS-744 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 9 x 6.25 x 3.25 inch / 229 x 159 x 83 mm
Notes AC - DC operated AM receiver without a scale. This is a very simple construction with an on/off - volume control on the left and a tuning knob on the right - nothing more. Sams photofact set 491 folder 9 date 7-60 features the Motorola models A1B, A1N, A1R and A1W as the same schematic. But in fact they had also a suffix. We are not yet sure if it is color or something else. We found this A1N-46 in brown but also an A1N-23 and A1N-32 in brown ...
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 491 folder 9 date 7-60)

Model page created by Ernst Erb. See "Data change" for further contributors.
