A1N Ch= HS-744; Motorola Inc. ex (ID = 950380) Radio
Motorola Inc. ex: A1N Ch= HS-744 [Radio] ID = 950380 933x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model A1N Ch= HS-744, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
By courtesy of guest Thomas Smith, Simpsonville, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1N Ch= HS-744 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 9 x 6.25 x 3.25 inch / 229 x 159 x 83 mm
Notes The Motorola Model A1N is an AC/DC operated 5 Tube AM Receiver. Color = Espresso Brown. BC Band Tuning Range: 535 to 1620KHz. Sams photofact set 491 folder 9 date 7-60 features Motorola models A1B, A1N, A1R and A1W which have the same schematic. Some models have additional numbers after the model number (23, 32, 46), however the Motorola datasheet does not indicate additional numbers in the model name, thus these numbers are probably date codes or production run codes.

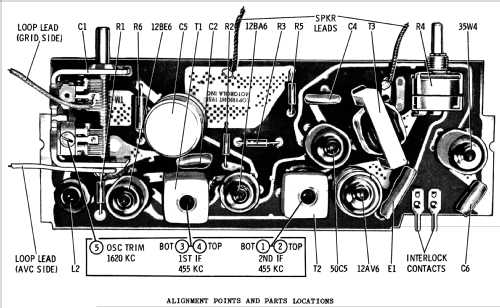

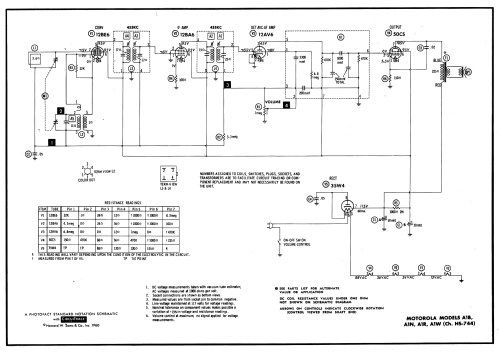

Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Mentioned in Beitman Radio Diagrams, Vol. 20, 1960

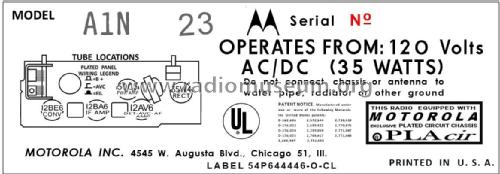

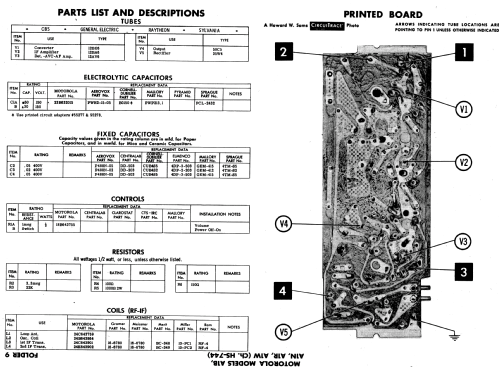

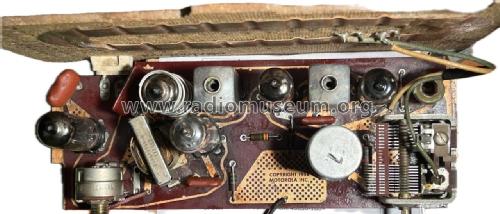

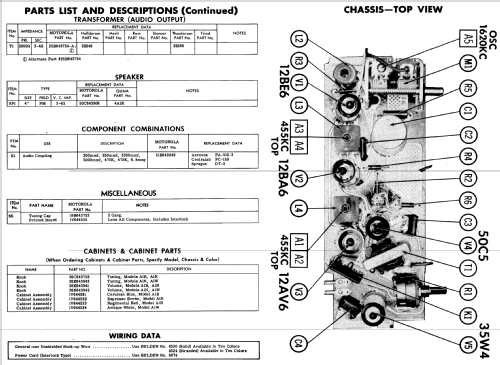

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 491 folder 9 date 7-60)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Trev Levick. See "Data change" for further contributors.
