A1W Ch= HS-744; Motorola Inc. ex (ID = 1612935) Radio

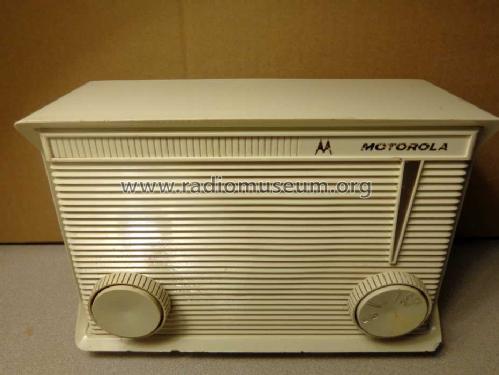

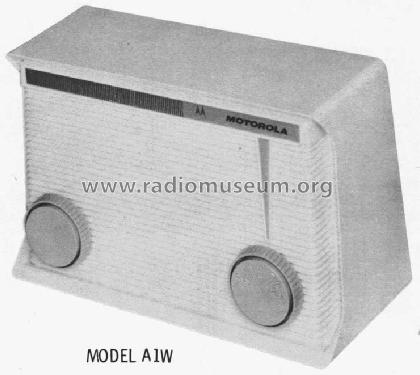

Motorola Inc. ex: A1W Ch= HS-744 [Radio] ID = 1612935 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model A1W Ch= HS-744, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner

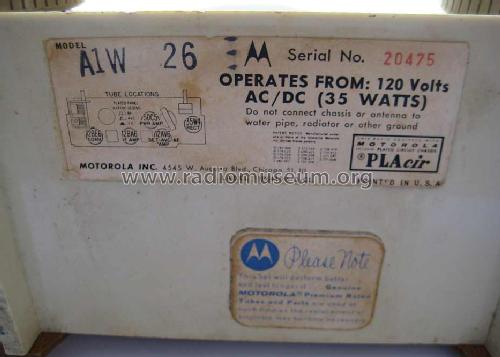

Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1W Ch= HS-744 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Motorola Model A1W is an AC/DC operated 5 Tube AM Receiver. Color = Antique White. BC Band Tuning Range: 535 to 1620KHz. Sams photofact set 491 folder 9 date 7-60 features Motorola models A1B, A1N, A1R and A1W which have the same schematic.

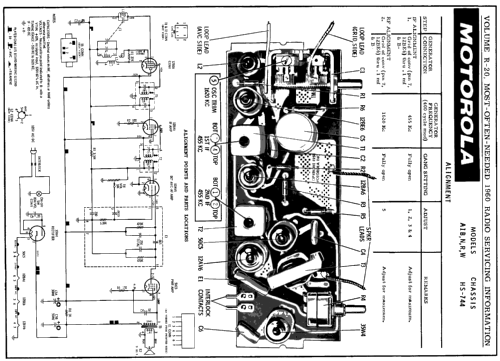

Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Mentioned in Beitman Radio Diagrams, Vol. 20, 1960

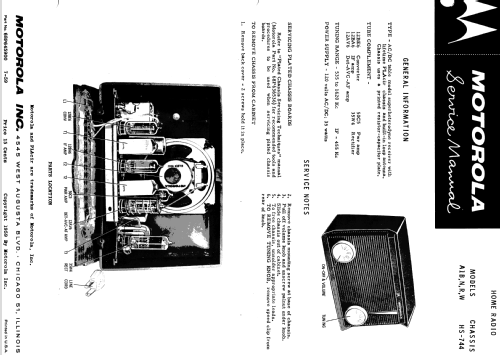

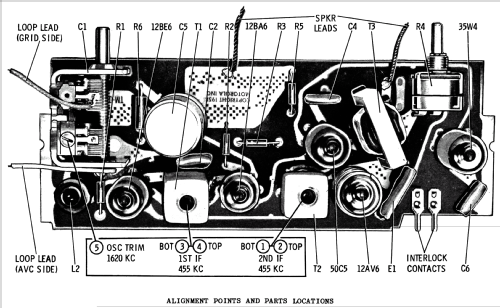

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 491 folder 9 date 7-60)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Trev Levick. See "Data change" for further contributors.
