A21K134W Ch= WTS-558

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485727) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485728) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485729) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485730) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485731) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485732) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485733) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485734) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485735) Television

A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485736) Television
A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485726) Television
Use red slider bar for more.
A21K134W Ch= WTS-558; Motorola Inc. ex (ID = 1485726) Television
Motorola Inc. ex: A21K134W Ch= WTS-558 [Television] ID = 1485726 933x802
Select picture or schematic to display from thumbnails on the right and click for download.
For model A21K134W Ch= WTS-558, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

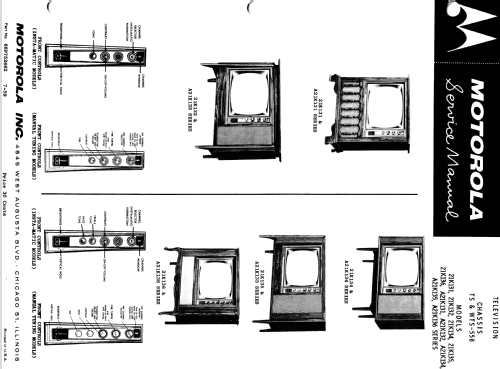

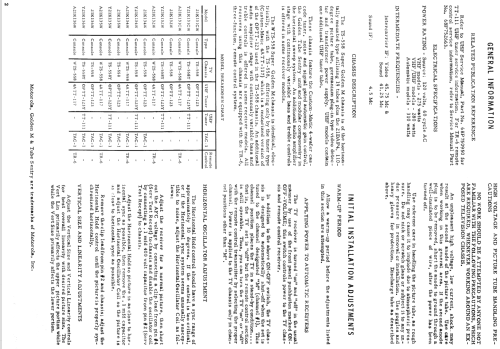

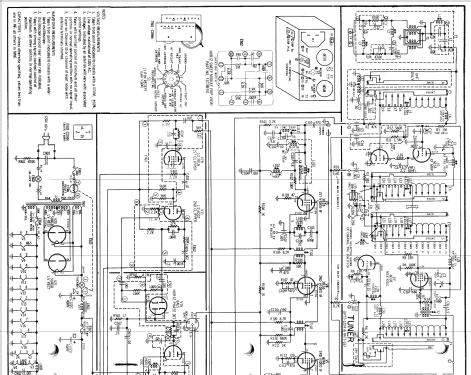

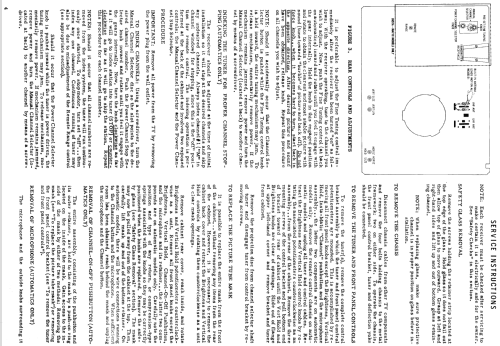

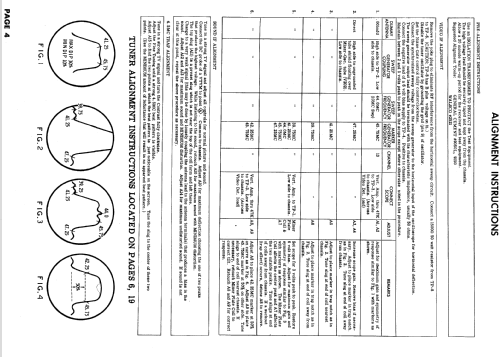

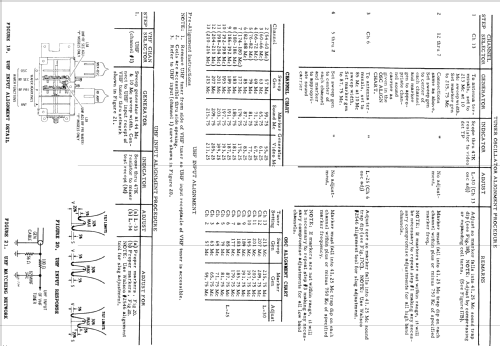

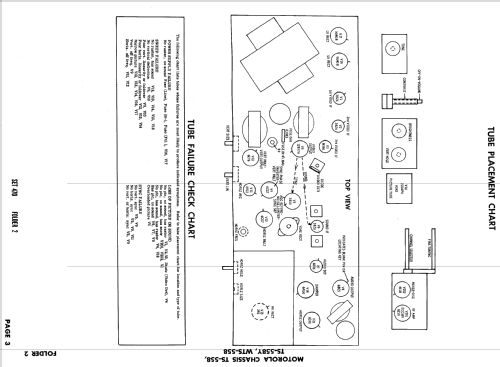

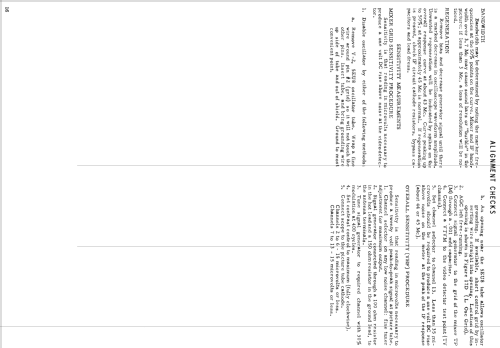

Picture from Motorola Datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: 6ES8 6EU8 3BZ6 3BZ6 6EW6 3BU8 12BY7A 3BZ6 6DT6 6C4 6BQ5 6CG7 6AL5 6CG7 6EX6 6AU4 6EY6 3A3 5U4GB 21DAP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 120 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: A21K134W Ch= WTS-558 - Motorola Inc. ex Galvin Mfg.Co
Material Wooden case
Shape Console with any shape - in general
Notes

The Motorola A21K134W is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis WTS-558, VHF tuner 4ATT-117 and picture tube 21DAP4. Console model with Walnut wooden cabinet. Has Qty(1) germanium diode video detector. Has Qty(1) PM 4" speaker, Qty(1) PM 5" speaker and Qty(1) PM 8" speaker.  The VHF tuner 4ATT-117 is a motorized version of the OPTT-123 tuner and is used with the three function remote control TR-6.

Source of data - - Manufacturers Literature
Literature/Schematics (2) - - Manufacturers Literature (Motorola Datasheet 68P752662 Dated 7-59)
Literature/Schematics (3) Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 2)

Model page created by John Kusching. See "Data change" for further contributors.



All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Here you find 4009 models, 2801 with images and 3638 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
