A21K59MCH Ch= VTS-539
Motorola Inc. ex: A21K59MCH Ch= VTS-539 [Television] ID = 1120600 751x850

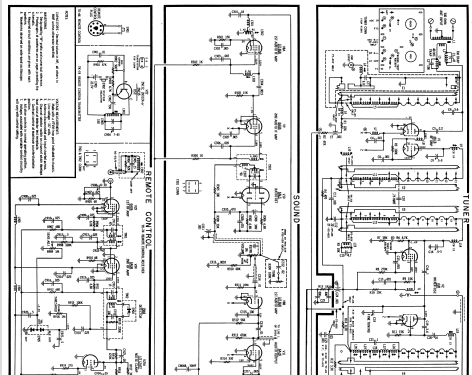

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1957 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 21: 6BC8 6U8 6BZ6 6BZ6 6CB6 12BY7A 6AU6 6U8 6AU6 6AL5 6AQ5 6SN7GTB 6SN7GTB 6SN7GTB 6DQ6 6AU4 1B3 6AQ5 5U4GB 5U4GB 21ATP4A |
|---|
| Main principle | Superhet with RF-stage |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm |
| Power out | |
| from Radiomuseum.org | Model: A21K59MCH Ch= VTS-539 - Motorola Inc. ex Galvin Mfg.Co |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Notes | 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Console model, champagne mahogany, masonite. Equipped with motor drive unit for channel selection, controlled by front panel push-buttons or by remote control. |
| Source of data | - - Manufacturers Literature |

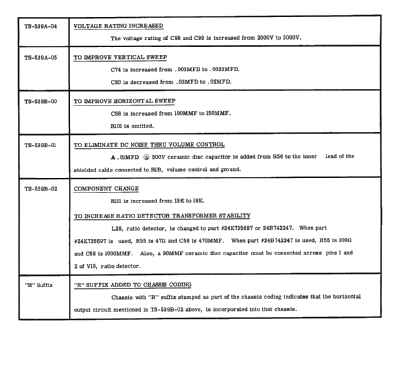

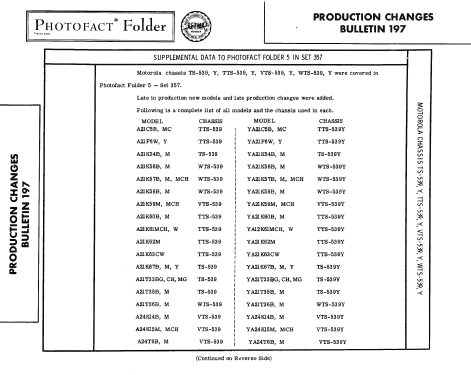

| Mentioned in | Photofact Folder, Howard W. SAMS (Set 384 Folder 5 Production Changes Bulletin 197 dated 1-58) |
Model page created by John Kusching. See "Data change" for further contributors.
