A21K95M Ch= TR-89
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: A21K95M Ch= TR-89 - Motorola Inc. ex Galvin Mfg.Co
- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 20.
Model with Remote Control TR-89.
- Literature/Schematics (1)

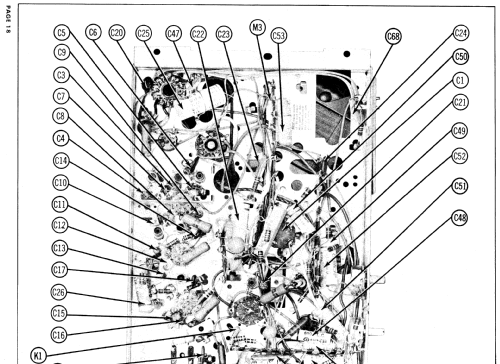

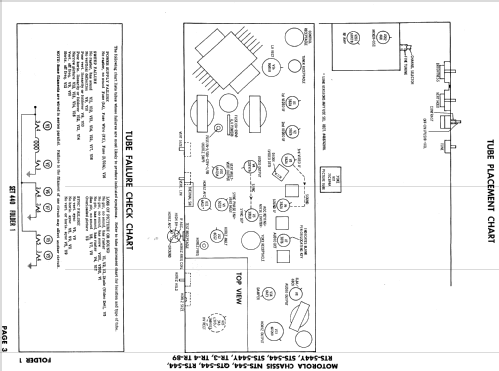

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 440, Folder 1)
- Model page created by Egon Penker. See "Data change" for further contributors.
