A21T60BG Ch= TR-3; Motorola Inc. ex (ID = 890585) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 21CBP4A
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A21T60BG Ch= TR-3 - Motorola Inc. ex Galvin Mfg.Co
Notes 21" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 18. Model with Remote Control TR-3.

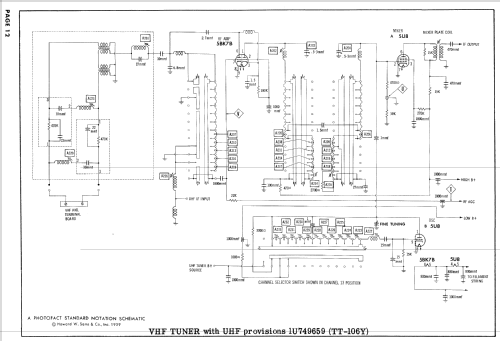

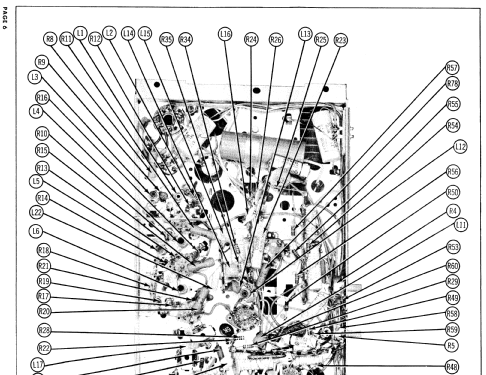

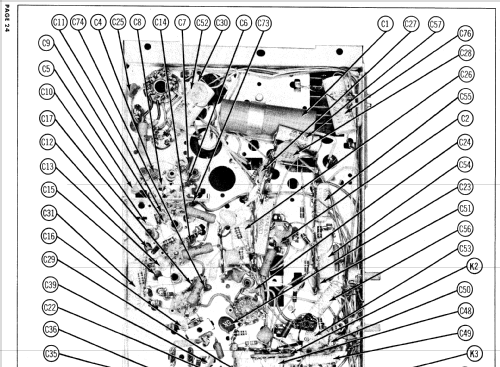

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-59, Set 444, Folder 1)

Model page created by Egon Penker. See "Data change" for further contributors.
