A2W Ch= HS-745

A2W Ch= HS-745; Motorola Inc. ex (ID = 1145081) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 1145082) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 1145083) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 1145084) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 1145085) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 185662) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 592358) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 592359) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 592360) Radio

A2W Ch= HS-745; Motorola Inc. ex (ID = 592361) Radio
A2W Ch= HS-745; Motorola Inc. ex (ID = 1145080) Radio A2W Ch= HS-745; Motorola Inc. ex (ID = 1211263) Radio
A2W Ch= HS-745; Motorola Inc. ex (ID = 1211264) Radio
Use red slider bar for more.
A2W Ch= HS-745; Motorola Inc. ex (ID = 1145080) Radio
Motorola Inc. ex: A2W Ch= HS-745 [Radio] ID = 1145080 476x394
Select picture or schematic to display from thumbnails on the right and click for download.
For model A2W Ch= HS-745, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Picture from Motorola datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: A2W Ch= HS-745 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14

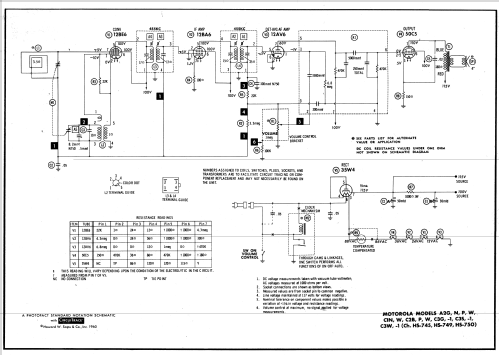

Notes The Motorola Model A2W is an AC/DC operated 5 Tube AM Receiver. Color = Antique White. BC Band Tuning Range: 535 to 1620KHz. Sams photofact set 492 folder 13 date 7-60 features the Motorola models A2G, A2N, A2P, A2W with chassis HS-745, the models C1N, C1W, C2B, C2P, C2W with chassis HS-749, the models C3G, C3G-1, C3S, C3S-1, C3W and C3W-1 with chassis HS-750 as the same schematic. C series has an electric clock.
Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Mentioned in Beitman Radio Diagrams, Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 492 folder 13 date 7-60)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Trev Levick. See "Data change" for further contributors.
