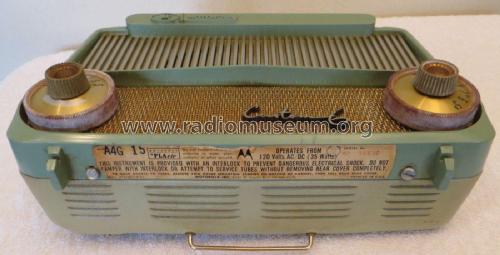

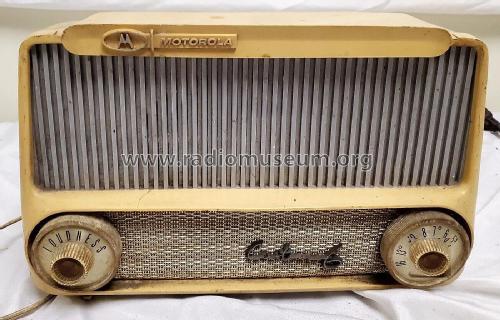

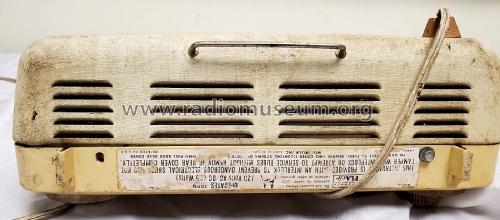

A4G (A4G-23) Custom Six Ch= HS-747

A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145690) Radio

A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145691) Radio

A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145692) Radio

A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145693) Radio

A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145694) Radio
A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1526567) Radio A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1145689) Radio
A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 2003133) Radio A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 2003134) Radio
A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 2003136) Radio
Use red slider bar for more.
A4G Custom Six Ch= HS-747; Motorola Inc. ex (ID = 1526567) Radio
Motorola Inc. ex: A4G Custom Six Ch= HS-747 [Radio] ID = 1526567 933x883
Select picture or schematic to display from thumbnails on the right and click for download.
For model A4G (A4G-23) Custom Six Ch= HS-747, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):
Image courtesy of Mark V. Stein for Radiomuseum.org use only. From Machine Age to Jet Age, Volume 2.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A4G Custom Six Ch= HS-747 - Motorola Inc. ex Galvin Mfg.Co
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

The Motorola Model A4G is an AC/DC operated 6 Tube AM Receiver. Color = Green. BC Band Tuning Range: 532 to 1620KHz. Speaker is elliptical PM 4" x 6".

Colored plastic and painted metal.

Source of data - - Manufacturers Literature
Literature/Schematics (1) Machine Age to Jet Age II (page 202.)

Model page created by John Kusching. See "Data change" for further contributors.
