For model A8J Ch= HS-744, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL):

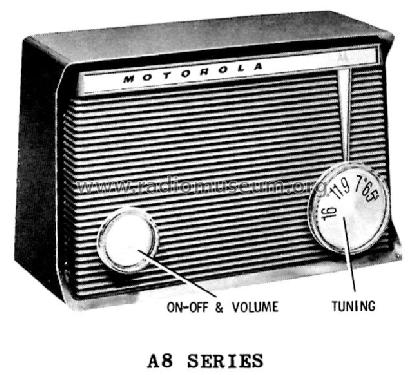

Ebay Seller: gamezandmore8110 Item Number: 160889876068 Motorola A8J Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A8J Ch= HS-744 - Motorola Inc. ex Galvin Mfg.Co
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Motorola Model A8J is an AC/DC operated 5 Tube AM Receiver. Color = Jade. BC Band Tuning Range: 535 to 1620KHz.
Source of data - - Manufacturers Literature

Model page created by John Kusching. See "Data change" for further contributors.
