A8S Ch= HS-744
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: A8S Ch= HS-744 - Motorola Inc. ex Galvin Mfg.Co
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 230 x 160 x 110 mm / 9.1 x 6.3 x 4.3 inch

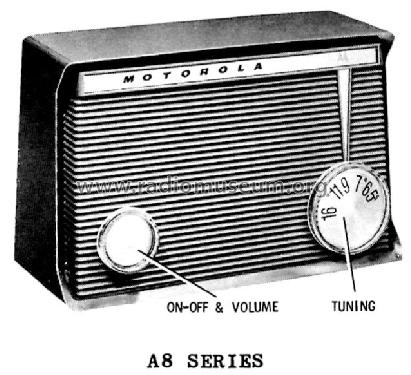

- The Motorola Model A8S is an AC/DC operated 5 Tube AM Receiver. Color = Sugar Maple. BC Band Tuning Range: 535 to 1620KHz.
- Source of data
- - - Manufacturers Literature
- Model page created by John Kusching. See "Data change" for further contributors.
