• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239401

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

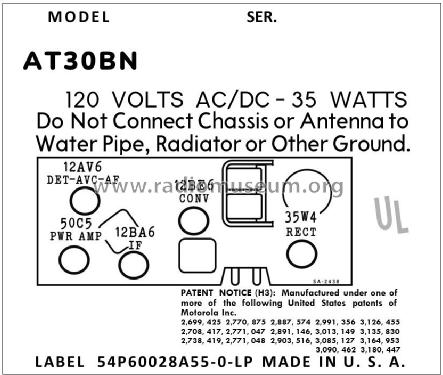

• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC 60 cycles, 120V or DC, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AT30BN Ch= HS-68202 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Motorola AC30BN is an AC/DC operated 5 tube BC band receiver. Has built-in loop antenna. BC band tuning range is 535 to 1620kHz. Cabinet color is Beige.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  AC30BG	Green
  AC30BH	White
  AC30BN	Beige



• Circuit diagram reference
• Beitman Radio Diagrams Vol. 26, 1966

• Literature/Schematics (1)
• - - Manufacturers Literature (Motorola Datasheet 68P63010A46 Dated 3-66)

• Literature/Schematics (2)
• Beitman Radio Diagrams, Vol. 26, 1966 (Page 69)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
