• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1964

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 284778

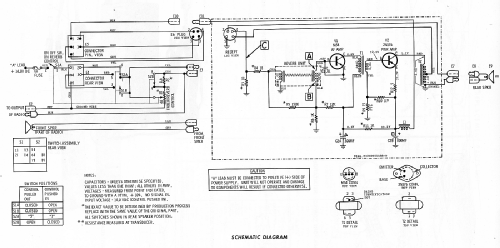

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• M54

• Number of Transistors
• 2

• Semiconductors
• 2N176

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto Vibra-Tone System RV5R - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes

• The RV5R reverberation system is designed for installation in the 1965 American Motors Rambler.  It is powered by the automobile battery and connects to the existing radio and speaker.

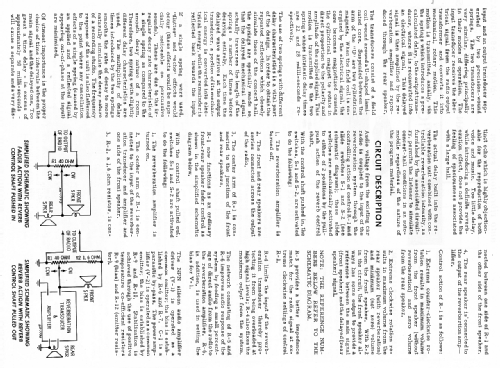

• Literature/Schematics (1)

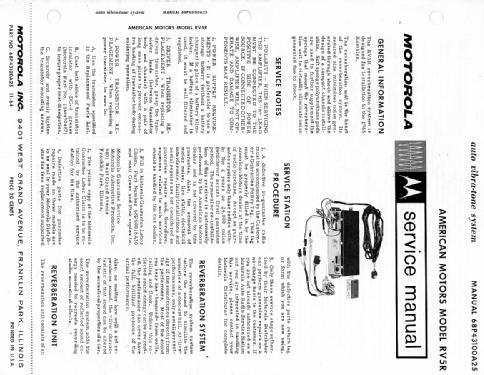

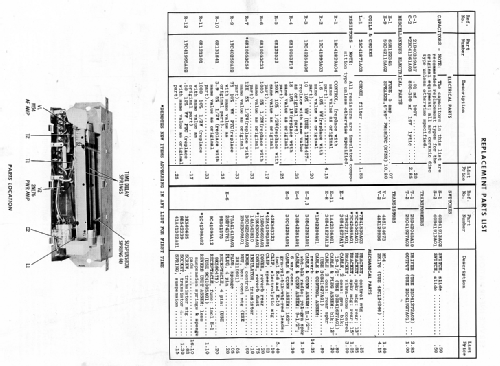

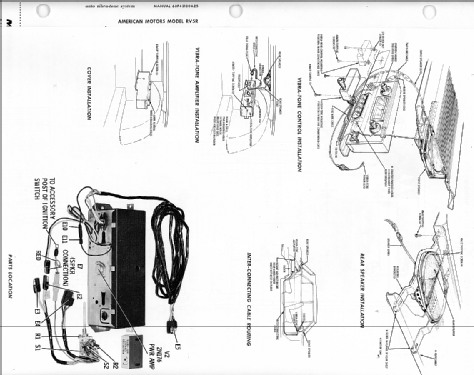

• Motorola Service Manual 68P43100A25 dated 11-64

• Author
• Model page created by David Erali. See "Data change" for further contributors.
