BK2A Ch= 2A, Power chassis P6-2 or P8-2
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1952 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 85827

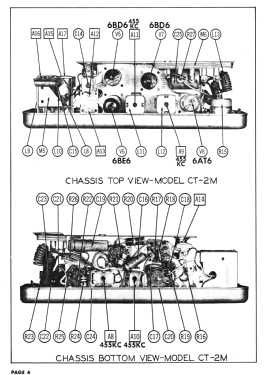

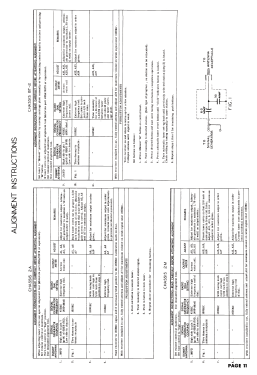

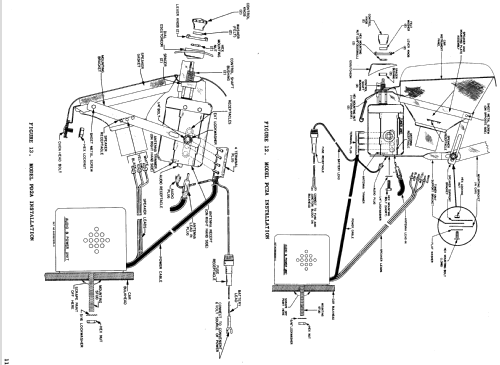

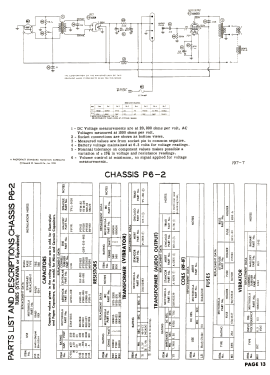

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: BK2A Ch= 2A, Power chassis P6-2 or P8-2 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
-
Motorola model BK2A is a battery operated automobile superheterodyne receiver for the
1942, 1946 thru 1952 Buick (except 1942 thru 1948 Buick Special) and others; see Photofact for additional car models supported. Note that this radio may have been available as a retrofit.The above Tuner Units must be used with a separate Audio & Power Unit (Motorola Models P6-2 or P8-2) to form a complete radio receiver. Note that only the receiver tubes are listed.
The P6-2 unit used a single Audio Power Output tube 6AQ5. The B+ voltage was generated with a Vibrator (6V car battery) and rectifier tube 6X4.The P8-2 unit used an Audio Inverter tube 6AT6 to drive Auto Power Output push-pull tubes 6AQ5 & 6AQ5. The B+ voltage was generated with a Vibrator (6V car battery) and rectifier tube 6X4.
