• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 78372

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C3S-1 Ch= HS-750 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • The Motorola Model C3S-1 is an AC operated 5 Tube AM Receiver with Electric Clock. Color = Maple Sugar. BC Band Tuning Range: 535 to 1620KHz. Sams photofact set 492 folder 13 date 7-60 features the Motorola models A2G, A2N, A2P, A2W with chassis HS-745, the models C1N, C1W, C2B, C2P, C2W with chassis HS-749, the models C3G, C3G-1, C3S, C3S-1, C3W and C3W-1 with chassis HS-750 as the same schematic. C series has an electric clock.

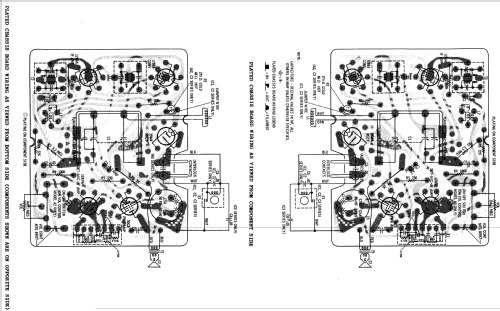

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960

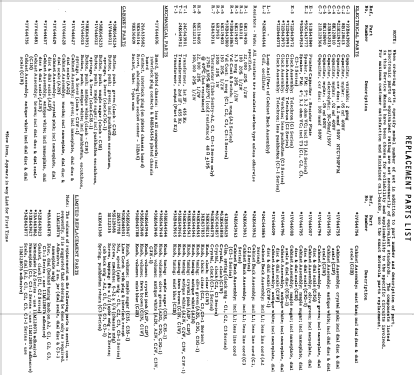

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
