• Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 210897

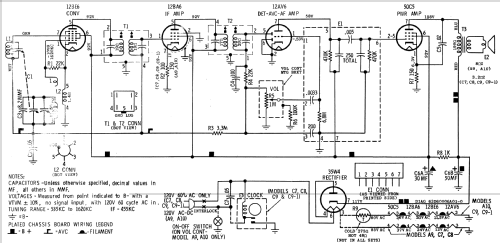

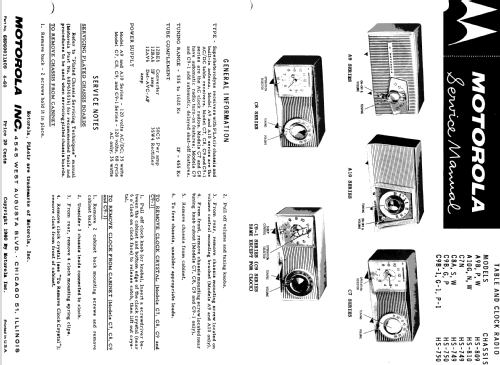

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

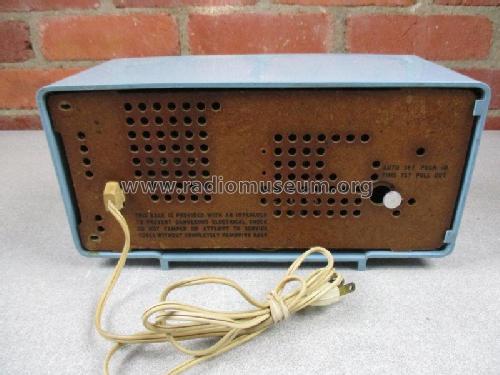

  • Model: C9B-1 Ch= HS-750 - Motorola Inc. ex Galvin Mfg.Co
  • Shape

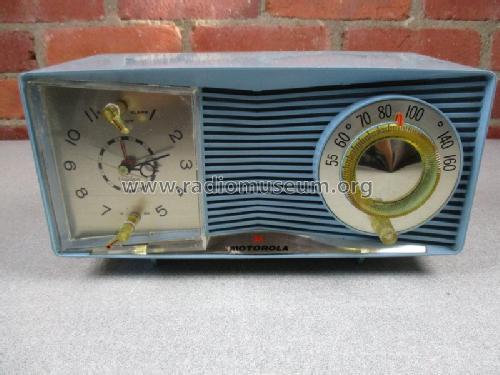

  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes

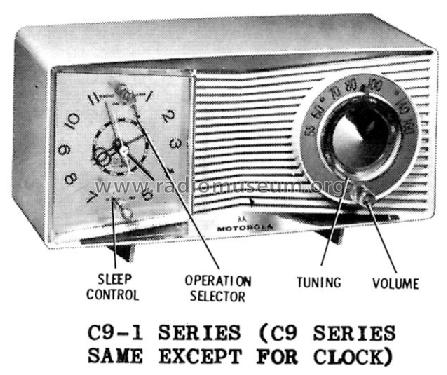

  • The Motorola Model C9B-1 is an AC operated 5 Tube AM Receiver with Electric Clock. Color = Blue Mist. BC Band Tuning Range: 535 to 1620kHz. This model is part of the A9, A10, C7, C8, C9 and C9-1 series of radios that share a common schematic (C7, C8, C9, C9-1 series also have an electric clock, with models C7 and C8 having automatic turn-on features and models C9 and C9-1 adding automatic/delayed shut-off features).
