• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1953

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 205294

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AT6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 265 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Metal case

• from Radiomuseum.org

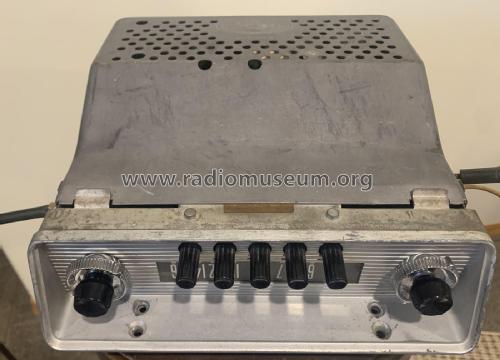

• Model: Ford 3MF - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes
• Speaker is 6 inch x 9 inch Elliptical

• Source of data
• - - Manufacturers Literature

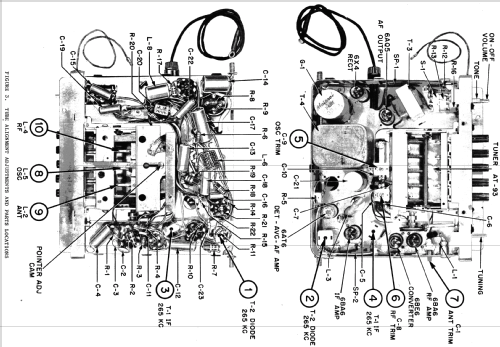

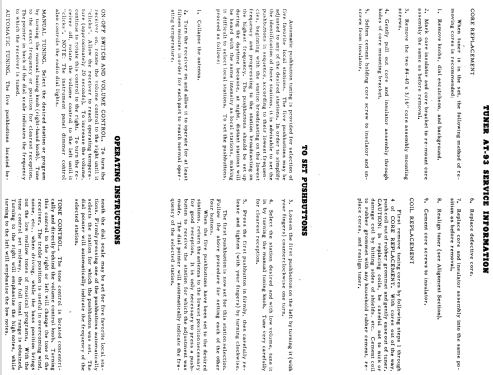

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 206, folder 5, June 1953)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
