Ford 79MS Ch= FEJ18806-C
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 272210

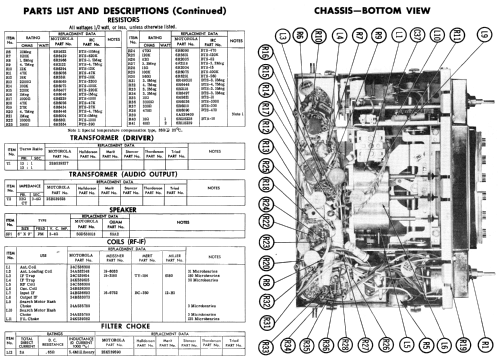

Aus Photofact Folder
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; ZF/IF 262,5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12,6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Ford 79MS Ch= FEJ18806-C - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
-
The Motorola 79MS is a battery operated 9 tube and 2 transistor BC band car radio. The BC band frequency tuning range is 540 - 1600 kHz. Uses Qty(1) PM elliptical 6" x 9" speaker. Has push-pull output stage using transistors.
- Mentioned in
- Photofact Folder, Howard W. SAMS (SET 354, FOLDER 8, Date 4-57)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
