L13S Ch= HS-729
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78359
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: L13S Ch= HS-729 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- The Motorola model L13S is a 7 transistor and 2 diode portable AM receiver. AM band tuning range: 535-1620KHz. An earphone jack is located on the side of radio which disconnects the speaker for private listening. Cabinet color = Maple Sugar.

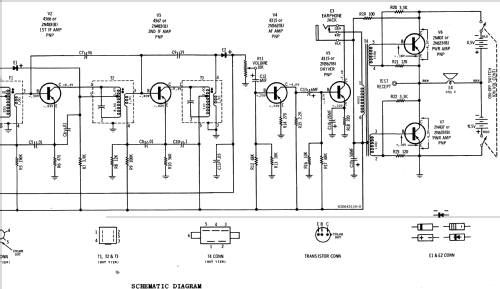

- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Mentioned in
- Beitman Radio Diagrams, Vol. 20, 1960
- Literature/Schematics (1)

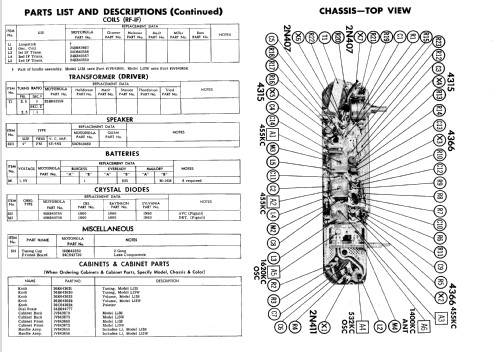

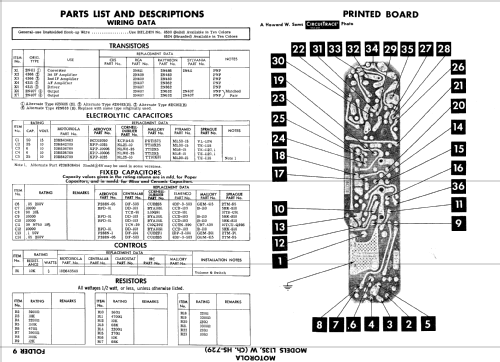

- Photofact Folder, Howard W. SAMS (Date 1-60, Set 469, Folder 9)
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
