Model 114

Model 114; Motorola Inc. ex (ID = 627179) Car Radio Model 114; Motorola Inc. ex (ID = 627181) Car Radio
Use red slider bar for more.
Model 114; Motorola Inc. ex (ID = 627179) Car Radio

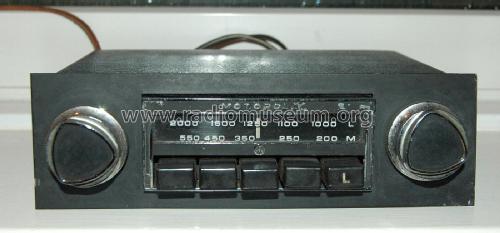

Motorola Inc. ex: Model 114 [Car Radio] ID = 627179 800x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model 114, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1979 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Model 114 - Motorola Inc. ex Galvin Mfg.Co
Material Metal case
Notes Push button permeability tuned radio. No dial cord, pointer moves with a mechanical linkage. Buttons are set by pulling out, tuning, then pushing in again.

Model page created by Bryce Ringwood. See "Data change" for further contributors.
