• Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 78392

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 20 W (unknown quality)
  • from Radiomuseum.org
  • Model: SH16E Ch= HS-763 HS-792 - Motorola Inc. ex Galvin Mfg.Co
  • Notes

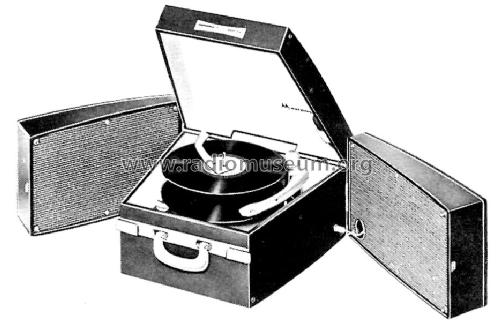

  • The Motorola Model SH16E is an AC operated 4 Tube portable stereo Phono Amplifier and a 4 Speed Automatic Record Changer. Uses audio amp chassis HS-763 and power supply chassis HS-792. Cabinet color is Charcoal. This model has Qty(2) 6" PM speakers and Qty(2) 4" PM speakers. Uses Record Changer BR8RC.

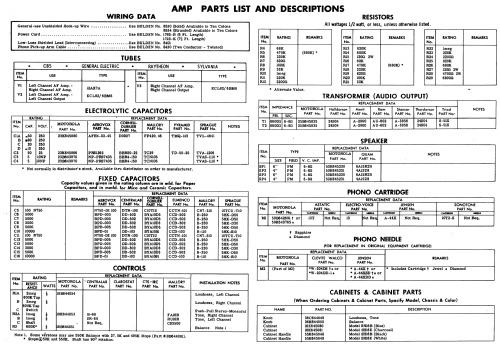

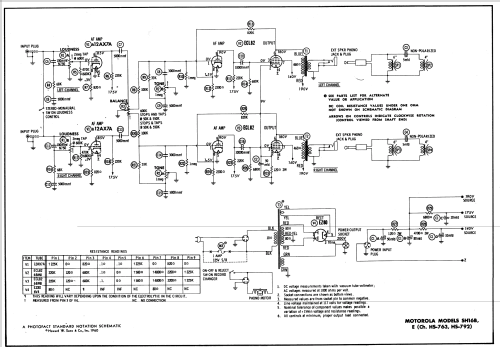

    Sams photofact set 496 folder 12 date 8-60 features the Motorola models SH16B and SH16E as the same schematic.

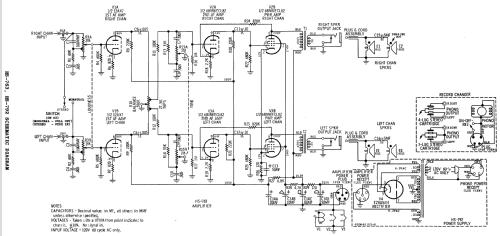

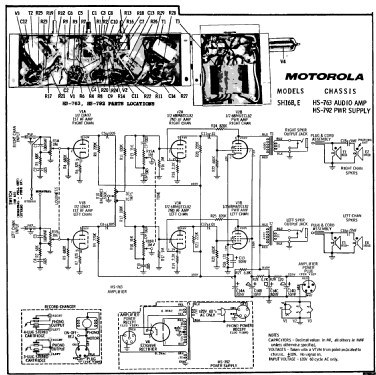

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
