• Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 78322

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Power out
  • 50 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK38B Ch= HS-767 Ch= HS-781 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Motorola Model SK38B is an AC operated 9 Tube, three channel stereo Phono Amplifier with 4 Speed Automatic Record Changer. Uses pre-amp chassis HS-781 and power amp chassis HS-767. Cabinet is Blonde Oak. This model has Qty(1) 12" PM speaker, Qty(2) 6" PM speakers and Qty(2) 4" PM speakers. Uses Record Changer BR10RC. Has separate bass channel that drives the 12" speaker. An optional drop-in AM-FM tuner was available from the dealer. Sams photofact set 492 folder 15 date 7-60 features the Motorola models SK36M, SK37CW and SK38B as the same schematic.

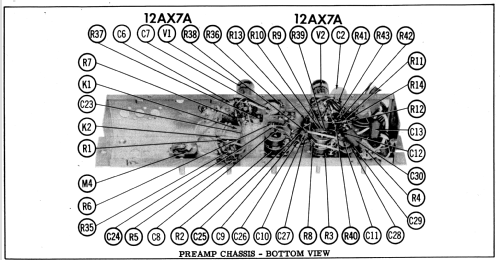

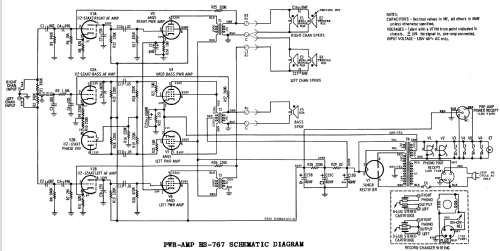

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960

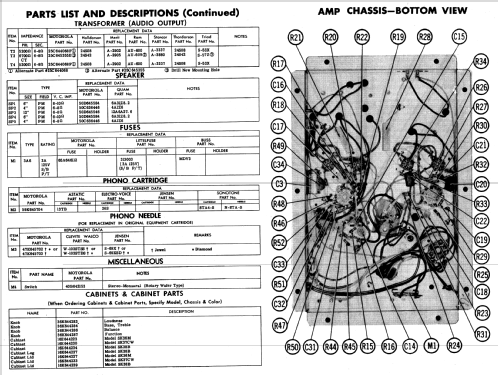

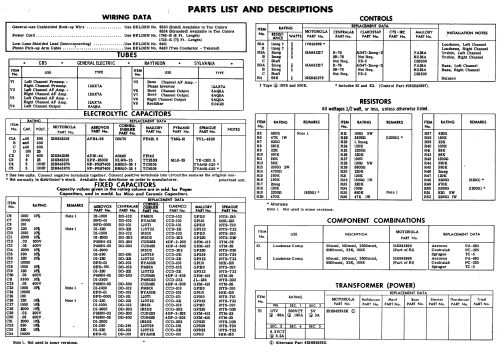

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.
