SK45CW Ch= HS-837 HS-838

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1960
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 211012

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Power out
  • 45 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK45CW Ch= HS-837 HS-838 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Motorola Model SK45CW is an AC operated 9 Tube stereo Phono Amplifier with 4 Speed Automatic Record Changer. Uses pre-amp chassis HS-837 and power amp chassis HS-838. Cabinet is Light Cherrywood. This model has Qty(1) 12" PM speaker, Qty(2) 6" PM speakers and Qty(2) 4" PM speakers. Uses Record Changer VM32RC. Has separate bass channel that drives the 12" speaker. An optional drop-in AM-FM tuner (HK45) was available as a dealer option.
  • Source of data

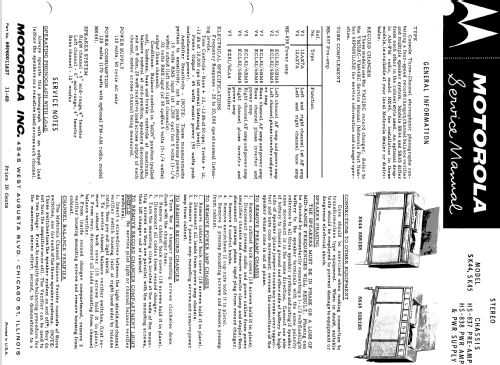

  • - - Manufacturers Literature
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
