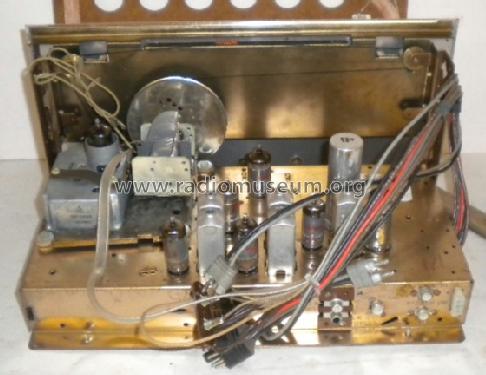

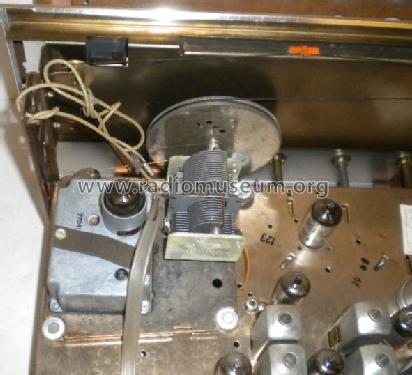

SK675 Ch= HS-1012 + HS-1018
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 89959
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: SK675 Ch= HS-1012 + HS-1018 - Motorola Inc. ex Galvin Mfg.Co
- Notes
-
The AF amp works single-ended for treble and push-pull for bass; tube V7B serves as phase inverter.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
