• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 363422

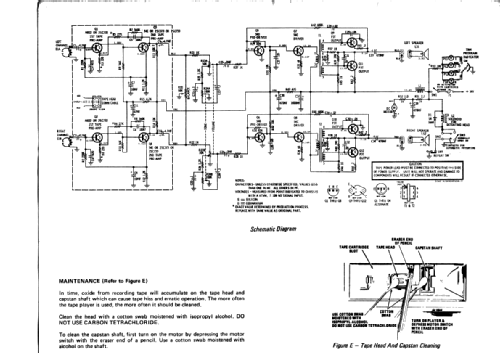

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Special Tape or Cassette-Format

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Eight TM413S - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 200 x 60 x 240 mm / 7.9 x 2.4 x 9.4 inch

• Notes

• Automotive 8 track stereo player.  12v negative earth for under dash mounting.

  The unit has an interesting feature in that there is a protective "roller door" type shutter over the cartridge opening, whcih slides down out of the way and then becomes the mechanism to eject the cartridge.  Normally, cartridges for 8 tracks are pulled out by the user and not ejected.

  Made in Japan

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Literature/Schematics (1)
• Photofact Auto Radio Series (AR-160, January 1974)

• Author
• Model page created by Nicholas Swift. See "Data change" for further contributors.
