• Year
  • 1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 215603

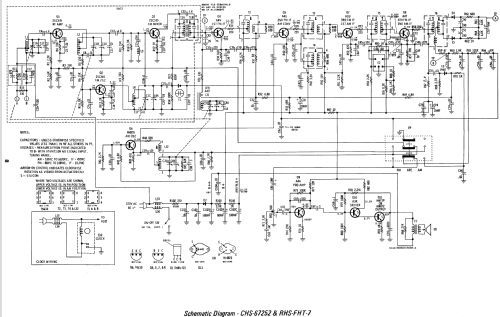

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TC27EH Ch= CHS-67252 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • The Motorola model TC27EH is a 11 transistor AM/FM Clock radio. AM Tuning Range: 535 to 1620 kHz. FM Tuning Range: 88 to 108 MHz. Has Qty(1) PM Elliptical 4" x 6" speaker. Cabinet color is White. Motorola model TC27EN uses the same schematic and chassis.

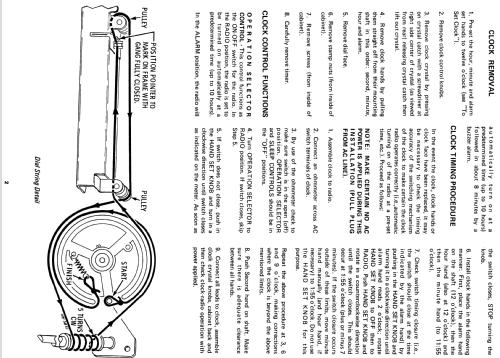

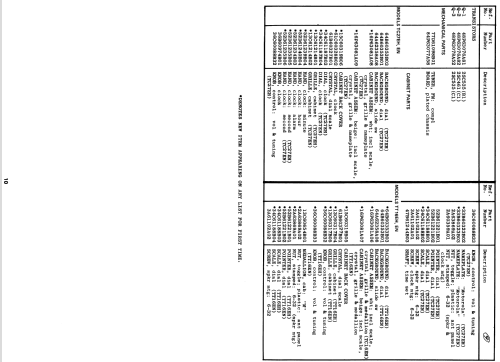

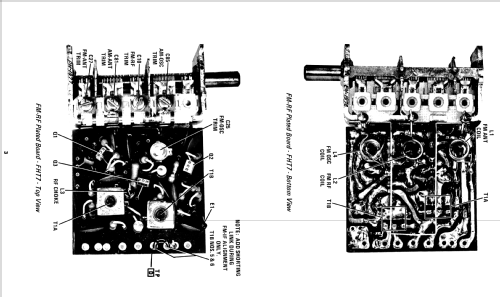

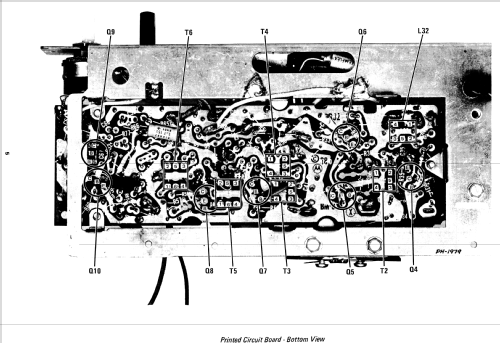

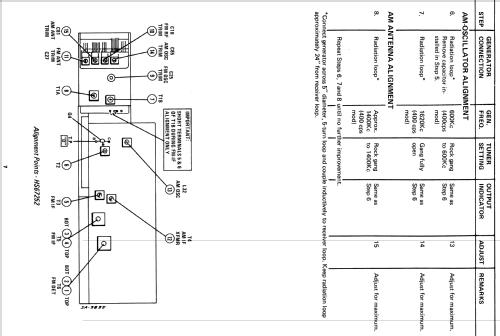

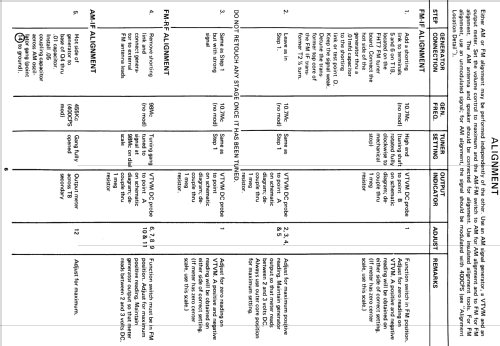

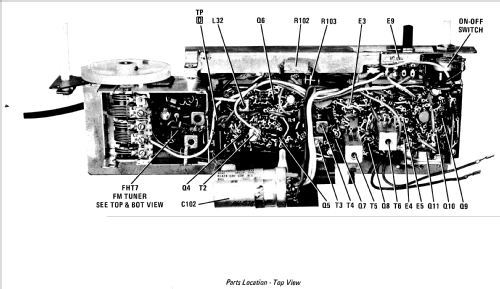

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P63012A31)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
