TC7BH Ch= HS-8206

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 93973

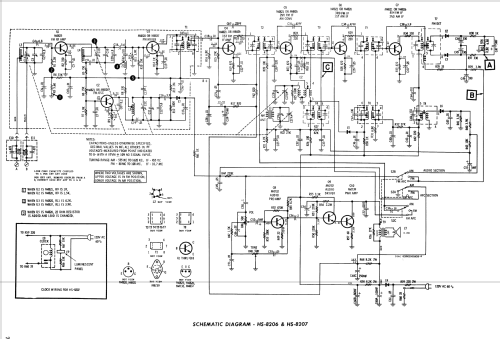

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TC7BH Ch= HS-8206 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes

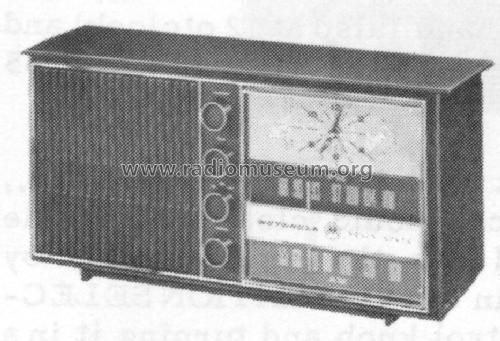

  • The Motorola TC7BH is an AC operated 10 transistor AM/FM clock radio. AM Tuning Range: 535 to 1620 kHz, FM Tuning Range: 88 to 108 MHz. Has Qty(1) PM 6" speaker and built-in AM ferrite antenna. Uses line cord as FM antenna with provisions for connecting an external FM antenna.  Has automatic radio turn-on feature and delayed radio shut-off feature. Cabinet color is Antique White.

    Clock has "Visilite" feature, which consists of two clock faces, one which is seen in daylight, the other seen at night.  Located in the center area of the dial face is a translucent ring which has opaque numerals super-imposed on its back side.  Located behind this center area is a plastic disc which is edge lit by a neon lamp.  The ring and numerals cannot be seen in daylight.  At night, however, the neon-lit plastic disc causes the translucent ring to glow softly and since the clock numerals and hands are silhoutted against it, the time is clearly visible.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    TC7BH Antique White
    TC7BN Charcoal Brown
    TC7BU Beige



  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 26, 1966
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P63010A40 Dated 11-65)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
