• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96093

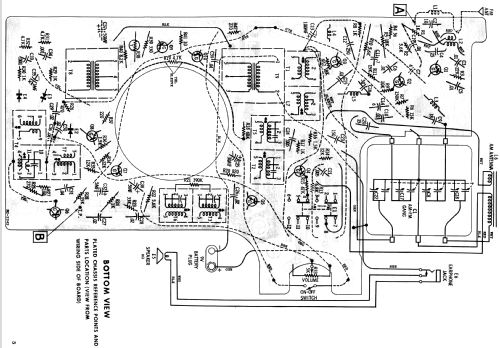

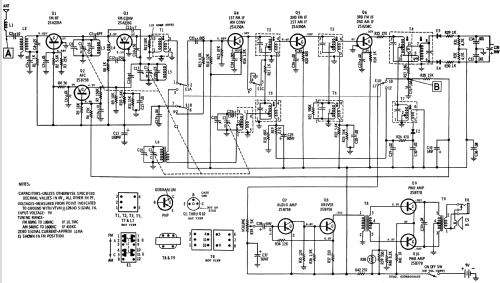

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 10 Transistor TP1D - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.875 x 4.625 x 1.375 inch / 73 x 117 x 35 mm

• Notes

• The Motorola model TP1D is a 10 transistor portable AM/FM radio. AM Tuning Range: 540 to 1600 kHz. FM Tuning Range: 88 to 108 MHz. Has Qty(1) PM Elliptical 1.5" x 2.5" speaker. Also has push-pull output. Uses Qty(1) 9V battery. Ferrite antenna used for AM, collapsible monopole antenna used for FM. Earphone jack provided on rear that disconnects speaker for private listening.

  Motorola 10 Transistor TP1DE is black.

  Made in Japan 705

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)

• Literature/Schematics (1)
• - - Manufacturers Literature (Motorola Datasheet 68P63011A25)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
