• Year
  • 1964 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 241527

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

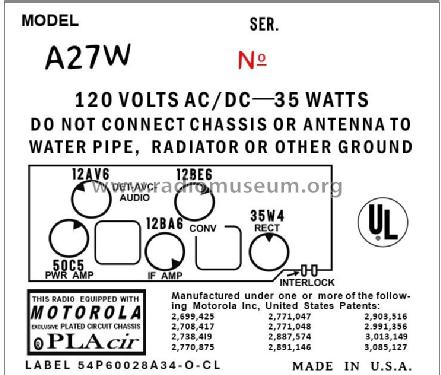

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC 60 cycles, 110 to 120V or DC, 110 to 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: A27W - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 11 x 6.5 x 4 inch / 279 x 165 x 102 mm
  • Notes

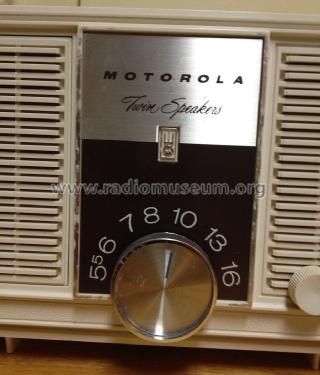

  • The Motorola A27W is an AC/DC operated, 5 tube BC band receiver.  BC band frequency range is 532 to 1620kHz. Has Qty(1) PM 4" speaker and Qty(1) PM 3.5" speaker.  Cabinet color is white.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    A27B Blue
    A27N Beige
    A27P Pink
    A27W White

    Sams Photofact Set 725, Folder 8 covers the following models: A26B/N/W, A27B/N/P/W, C38B/N/W, C39B/N/P/W.

  • Net weight (2.2 lb = 1 kg)
  • 1.465 kg / 3 lb 3.6 oz (3.227 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
