X12E Ch= HS-732

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 136337

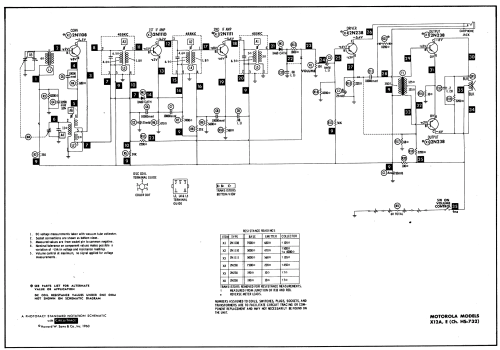

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: X12E Ch= HS-732 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes

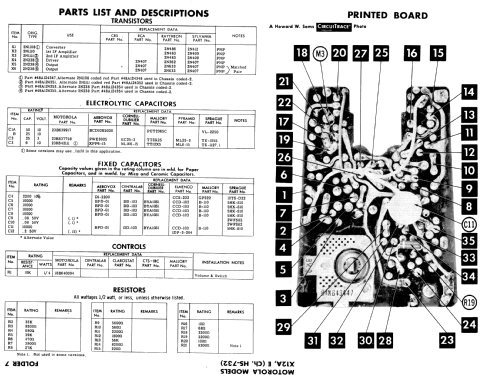

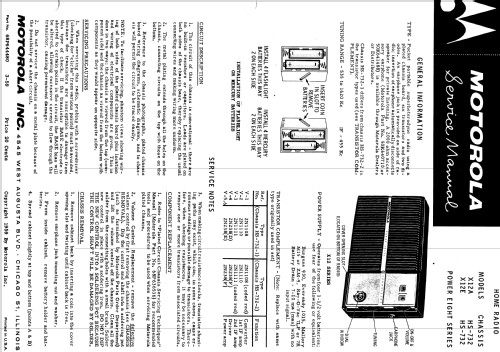

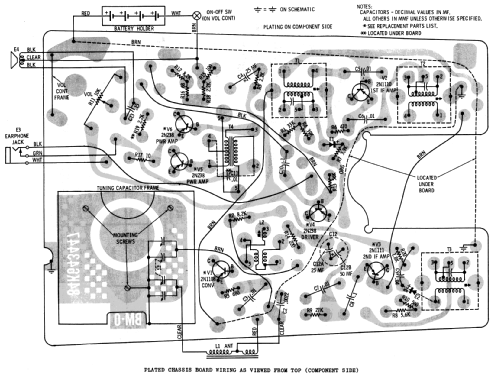

  • The Motorola model X12E is a 6 transistor and 2 diode portable AM receiver. AM band tuning range: 535-1620KHz. An earphone jack is located on side of radio which disconnects the speaker for private listening. Cabinet color = Smoke. Sams photofact, set 472 folder 7 date 1-60, features the Motorola models X12A and X12E as the same schematic.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
