• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135201

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x AA 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

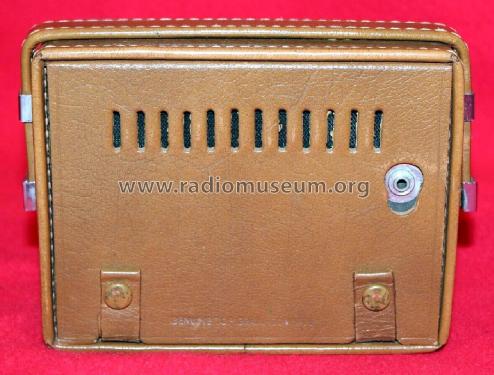

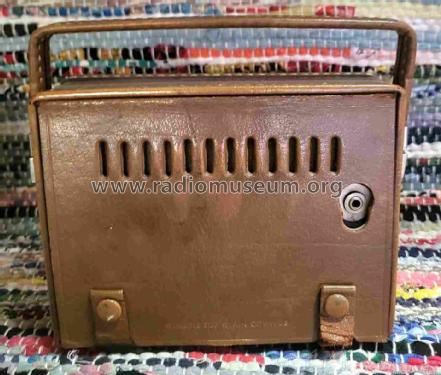

• Model: All Transistor X48N - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.75 x 4.375 x 2 inch / 146 x 111 x 51 mm

• Notes

• The following models are identical except for cabinet color.

  Model	Cabinet Color
  X48E	Black Leather
  X48N	Brown Leather



• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 175)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
