X60 Ch= HS-6127

X60 Ch= HS-6127; Motorola Inc. ex (ID = 197330) Radio

X60 Ch= HS-6127; Motorola Inc. ex (ID = 2024858) Radio
X60 Ch= HS-6127; Motorola Inc. ex (ID = 2549742) Radio X60 Ch= HS-6127; Motorola Inc. ex (ID = 2024853) Radio
X60 Ch= HS-6127; Motorola Inc. ex (ID = 2024854) Radio X60 Ch= HS-6127; Motorola Inc. ex (ID = 2024855) Radio
X60 Ch= HS-6127; Motorola Inc. ex (ID = 2024857) Radio X60 Ch= HS-6127; Motorola Inc. ex (ID = 2549743) Radio
X60 Ch= HS-6127; Motorola Inc. ex (ID = 2549744) Radio
Use red slider bar for more.
X60 Ch= HS-6127; Motorola Inc. ex (ID = 2549742) Radio
Motorola Inc. ex: X60 Ch= HS-6127 [Radio] ID = 2549742 1050x1094
Select picture or schematic to display from thumbnails on the right and click for download.
For model X60 Ch= HS-6127, Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: X60 Ch= HS-6127 - Motorola Inc. ex Galvin Mfg.Co
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

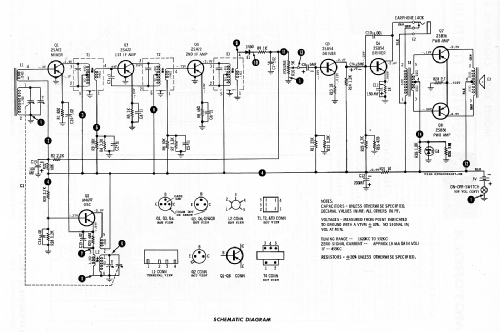

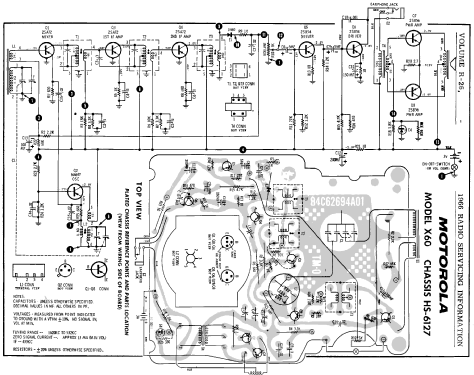

Circuit diagram reference Beitman Radio Diagrams Vol. 26, 1966

Model page created by Egon Penker. See "Data change" for further contributors.
