X25E Ch= HS-882

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87970

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA52 2SA49 2SA49 2SB54 2SB56 2SB56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: X25E Ch= HS-882 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 105 x 40 mm / 2.7 x 4.1 x 1.6 inch

• Notes

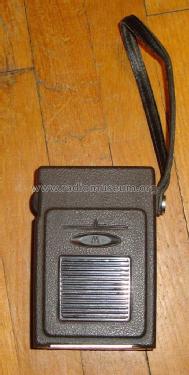

• The Motorola model X25E is a portable 6 transistor, 1 thermistor and 1 diode AM radio. AM Tuning Range: 532 to 1620 KHz. Color = Black. Earphone jack is located on side of radio which disconnects the speaker for private listening. Swivel metal stand at bottom. Heavy weighted unit due to type of components.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 22, 1962

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 580 Folder 8 5-1962)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
