Y17T27CH Ch= TS-422Y

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264442

• Picture

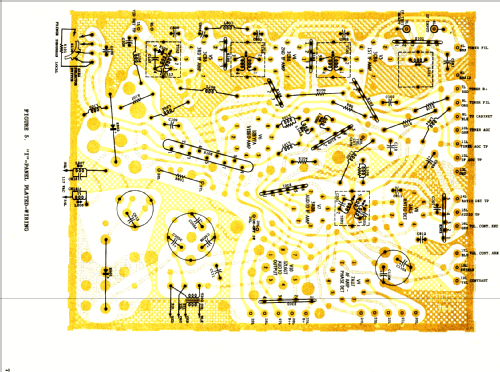

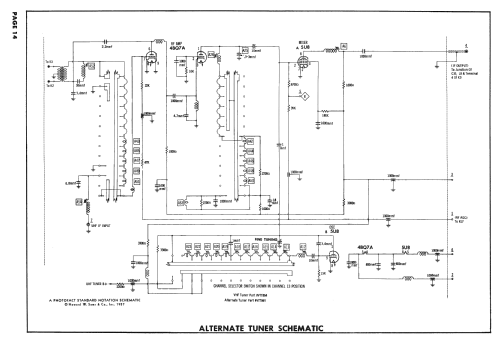

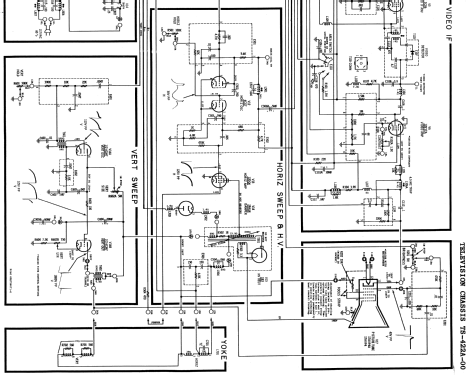

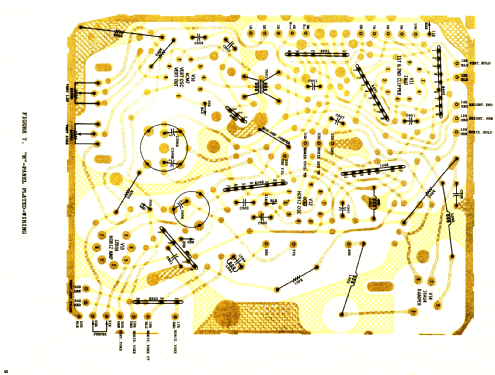

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 4BQ7A or 4BS8 2AF4 5U8 3CB6 3CB6 3CB6 12BY7A 3AU6 3AL5 7AU7 12L6GT 7AU7 6CG7 12DQ6 19AU4 1B3 6CM7 17AVP4A or 17AVP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Y17T27CH Ch= TS-422Y - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 19.5 x 17.125 x 15.5 inch / 495 x 435 x 394 mm

• Notes

• The Motorola  Y17T27CH is a 17" b/w TV with US FCC standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-422Y, VHF tuner VTT-86Y, UHF tuner WTT-87 and picture tube 17AVP4A or 17AVP4. Has Qty(2) Selenium rectifiers. Cabinet color is charcoal.

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 344 Folder 18-S date 1 - 57)

• Literature/Schematics (2)
• - - Manufacturers Literature (Motorola Service Manual 68P738085 dated 1957)

• Literature/Schematics (3)

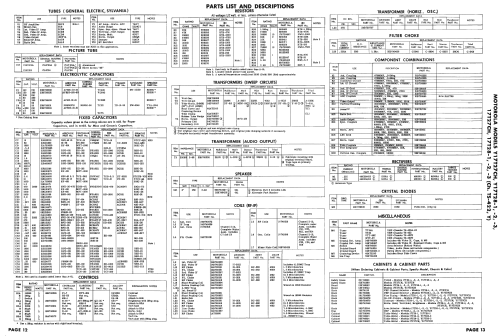

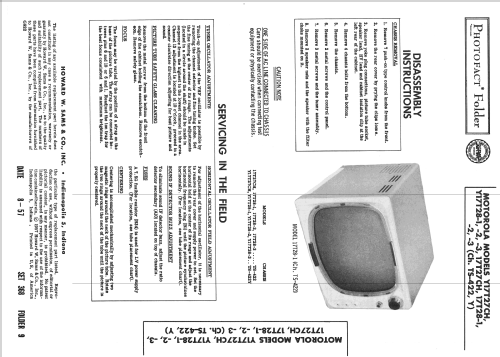

• Photofact Folder, Howard W. SAMS (Set 368 Folder 9 dated 8-57)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
