• Year
  • 1957
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 232517

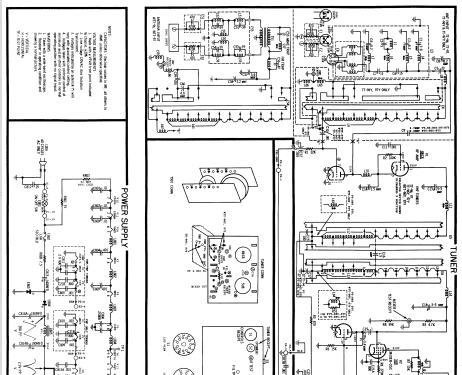

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Y21K79MCA Ch= TS-542Y - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes
  • The Motorola Y21K79MCA is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-542Y, VHF tuner TT-96Y, UHF tuner VTT-89 and picture tube 21CBP4A.  Console model, California Mahogany, masonite. Has Qty(2) Selenium Rectifiers. Has Qty(1) PM 4" speaker and Qty(1) Elliptical PM 6" x 9" speaker.

  • Source of data
  • - - Manufacturers Literature

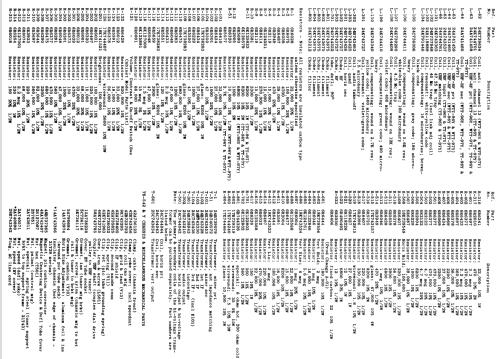

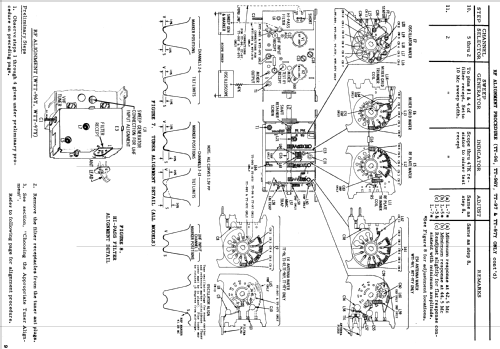

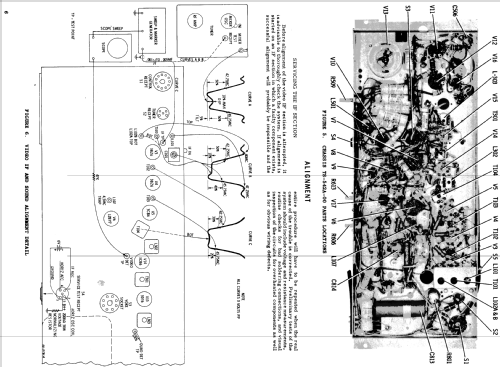

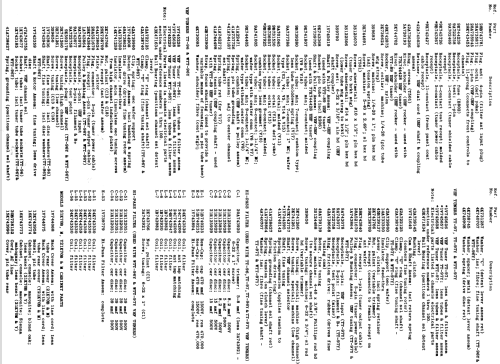

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P742587)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
