• Year
  • 1955 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 336270

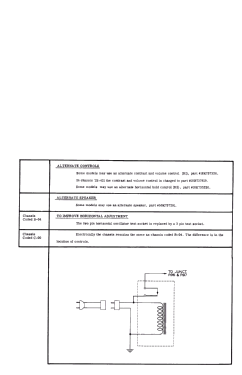

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superhet with RF-stage
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: Y21T15 Ch= WTS-518YA-02 - Motorola Inc. ex Galvin Mfg.Co
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
