• Year
  • 1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 233120

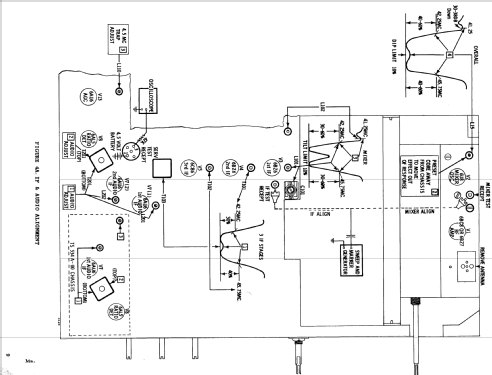

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 105 to 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.25 inch = 13.3 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Y21T27MA Ch= TS-534YB - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • The Motorola Y21T27MA is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TS-534YB, VHF tuner TT-80, UHF tuner RTT-37 and picture tube 21ALP4A.  Table model, Gossamer Mahogany metal cabinet. Has Qty(2) Selenium Rectifiers and Qty(1) germanium diode detector.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Motorola Datasheet 68P736362)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
