• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 140182

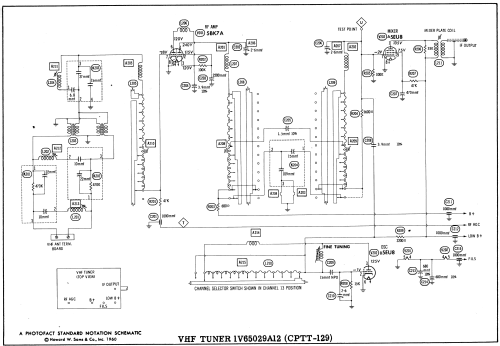

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 3BZ6 3BZ6 4EW6 6AU8 3BU8 3DT6 XL84 6CN7 5AQ5 5GH8 12DQ6A 12AF3 3A3 5BK7A 5EU8 21CBP4A

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org
• Model: Y21T73B Ch= TS-567Y - Motorola Inc. ex Galvin Mfg.Co

• Notes
• Channels 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 503 folder 2 date 10-60 features the Motorola models 21T73B, 21T73M, 21T73W, 21K150B, 21K150M, 21K150W, 12K151B, 21K151M, 21K151W, 21K152CW, 21K153B, 21K153M, 12K153W, 21K154CW, all with Chassis TS-567 and the models Y21T73B, Y21T73M, Y21T73W, Y21K150B, Y21K150M, Y21K150W, Y21K151B, Y21K151M, Y21K151W, Y21K152CW, Y21K153B, Y21K153M, Y21K153W, Y21K154CW all with Chassis TS567Y as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 503 folder 2 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
