MAS229/15

MAS229/15; Mullard Wireless, (ID = 415453) Radio MAS229/15; Mullard Wireless, (ID = 415454) Radio
MAS229/15; Mullard Wireless, (ID = 415455) Radio MAS229/15; Mullard Wireless, (ID = 1244081) Radio
MAS229/15; Mullard Wireless, (ID = 1244082) Radio MAS229/15; Mullard Wireless, (ID = 1357543) Radio
MAS229/15; Mullard Wireless, (ID = 1357544) Radio MAS229/15; Mullard Wireless, (ID = 1357547) Radio
MAS229/15; Mullard Wireless, (ID = 1357549) Radio
Use red slider bar for more.

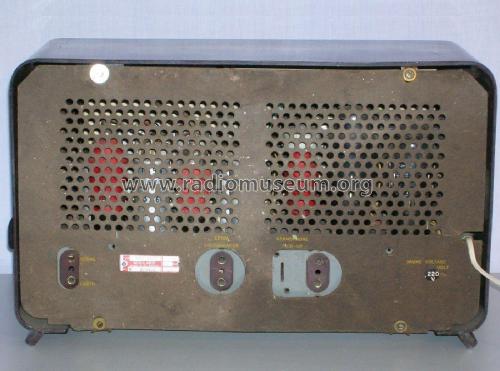

MAS229/15; Mullard Wireless, (ID = 415453) Radio
Mullard Wireless,: MAS229/15 [Radio] ID = 415453 933x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model MAS229/15, Mullard Wireless, London (see also Mullard Radio Valve)

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1942 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EF39 EBC33 EL33 AZ31
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: MAS229/15 - Mullard Wireless, London see
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 210 x 240 mm / 15.7 x 8.3 x 9.4 inch
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Source of data - - Data from my own collection

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
