For model MAS4, Mullard Wireless, London (see also Mullard Radio Valve):
Ebay UK item no. 151896440665 seller bid_for_victory

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: FC4 VP4B TDD4 PenA4 DW2_Mullard
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: MAS4 - Mullard Wireless, London see
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 19.5 x 18 x 11 inch / 495 x 457 x 279 mm
Notes

The AC/DC version of this model is the MUS4. This set is a Mullard version of the Philips 797A.

The AC/DC version of this model is the MUS4. This set is a Mullard version of the Philips 797A.

Price in first year of sale 15.00 GBP
Source of data Radio! Radio!
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (192)

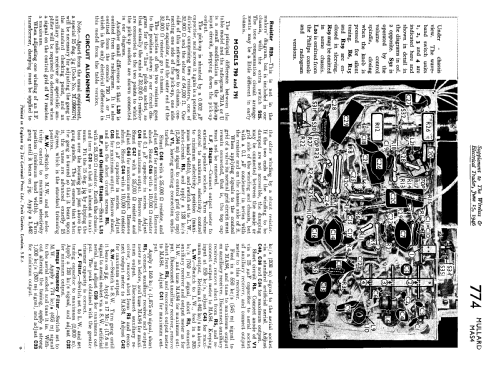

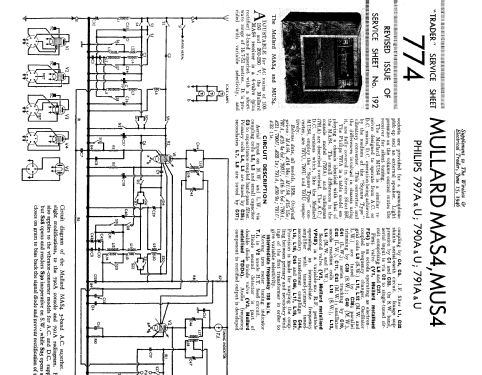

Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (774)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
