For model MUS221, Mullard Wireless, London (see also Mullard Radio Valve):

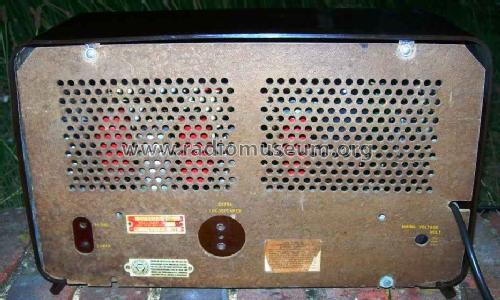

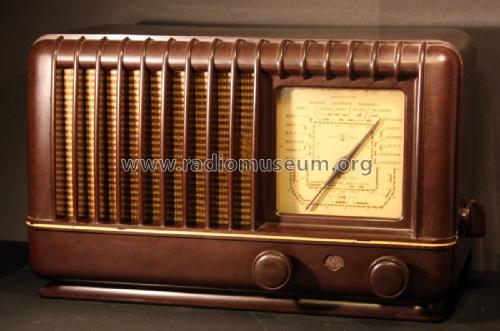

My Mullard MUS221 AC/DC 5 valve MW/LW/SW radio in its brown bakelite cabinet. It has the same chassis as the Philips 371U.

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH35 EF39 EBC33 CL33 CY31
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: MUS221 - Mullard Wireless, London see
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16.25 x 9.75 x 7.5 inch / 413 x 248 x 191 mm
Literature/Schematics (1) Mullard service manual Paul Stenning CD's vol 4

Model page created by Keith Staines. See "Data change" for further contributors.
