Orgola A. C.

Orgola A. C. ; Mullard Wireless, (ID = 1449075) Kit Orgola A. C. ; Mullard Wireless, (ID = 1449073) Kit
Use red slider bar for more.
Orgola A. C. ; Mullard Wireless, (ID = 1449075) Kit
Mullard Wireless,: Orgola A. C. [Kit] ID = 1449075 933x481
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orgola A. C., Mullard Wireless, London (see also Mullard Radio Valve):

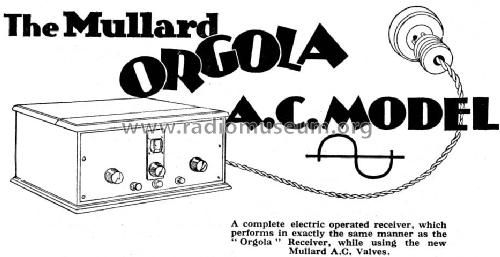

Finished kit. Case wasn't included, just the front panel. From Radio for the Million title page for Orgola AC article.

Country:  Great Britain (UK)
Manufacturer / Brand:  Mullard Wireless, London (see also Mullard Radio Valve)
Year: 1929 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 3: S4V 354V PM24
Main principle TRF with regeneration; 1 AF stage(s); Anode bend detection
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Orgola A. C. - Mullard Wireless, London see
Material Various materials
Shape Tablemodel, with any shape - general.
Notes

Similar to the Orgola, but with changes for Indirect valves. Requires a Grid Bias battery. 16V Siemens G.3. There is also an Orgola Senior.

A typical Kit TRF Radio of the "SG Det Pen" type (i.e. Screen Grid (Tetrode) RF, Triode detector and Pentode audio output) of late 1920s / early 1930s

Medium Wave described as "Short Wave".

Gram/P.U. Selection option.

Mullard Model H loudspeaker recommended or Model C (no output transformer, so high impedance headphones, horn or "reed" type speaker).

Separate heater filament transformer and H.T. Unit.



Mentioned in - - Manufacturers Literature (Radio for the Million Vol. 4 No.1 September 1929)

Model page created by Michael Watterson. See "Data change" for further contributors.
