MBS1105A

MBS1105A; Mullard Radio (ID = 2111429) Radio
MBS1105A; Mullard Radio (ID = 2111331) Radio MBS1105A; Mullard Radio (ID = 2111336) Radio
MBS1105A; Mullard Radio (ID = 2111337) Radio
Use red slider bar for more.
MBS1105A; Mullard Radio (ID = 2111331) Radio
Mullard Radio: MBS1105A [Radio] ID = 2111331 1161x956
Select picture or schematic to display from thumbnails on the right and click for download.

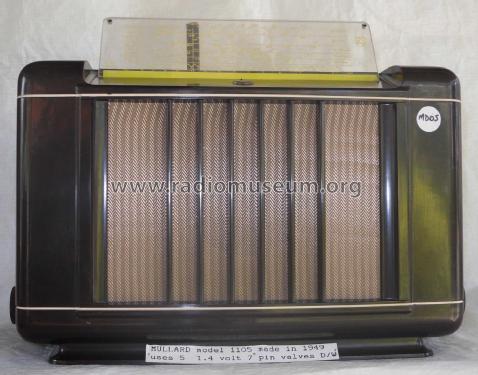

For model MBS1105A, Mullard Radio Company (Australia) Ltd.; Sydney:
Dial is missing at the top.

Country:  Australia
Manufacturer / Brand:  Mullard Radio Company (Australia) Ltd.; Sydney
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1R5 1T4 1T4 1S5 1Q5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2 x 45 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: MBS1105A - Mullard Radio Company
Material Bakelite case
Shape Tablemodel, low profile (big size).
Notes

See also Philips version, Radioplayer Model 117A.

Price below included batteries.

Price in first year of sale 35.95 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII
Literature/Schematics (1) - - Manufacturers Literature (Mullard Master Radio Service Data.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 249.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
