Mullardette 42

Mullardette 42; Mullard Radio (ID = 720277) Radio

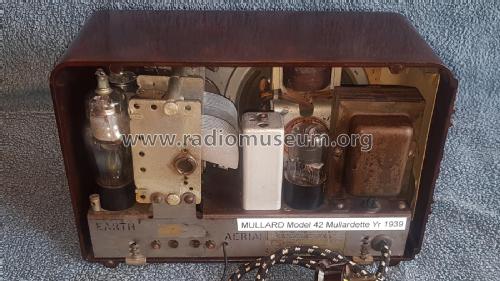

Mullardette 42; Mullard Radio (ID = 2356061) Radio Mullardette 42; Mullard Radio (ID = 2356062) Radio
Use red slider bar for more.
Mullardette 42; Mullard Radio (ID = 2356061) Radio
Mullard Radio: Mullardette 42 [Radio] ID = 2356061 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mullardette 42, Mullard Radio Company (Australia) Ltd.; Sydney

Country:  Australia
Manufacturer / Brand:  Mullard Radio Company (Australia) Ltd.; Sydney
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6D8G 6P7G 6K6G 6X5G
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Mullardette 42 - Mullard Radio Company
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes This set uses the same chassis as the Airzone model 456. This model was available in a Bakelite walnut coloured cabinet or a Urea Ivory or Green cabinet. The Urea cabinets cost £1/1/- extra.
Price in first year of sale 13.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. IV
Literature/Schematics (1) Radio & Electrical Retailer, Australia (2/11/39 Also in Mingay's Radio Diagram & I.F. Index)

Model page created by Stuart Irwin. See "Data change" for further contributors.
