Television Receiver 721CPM/82 VHF/UHF Tuner PR-0253

Muntz TV Inc.; Hollywood (CA)

  • Year
  • 1957 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 271956

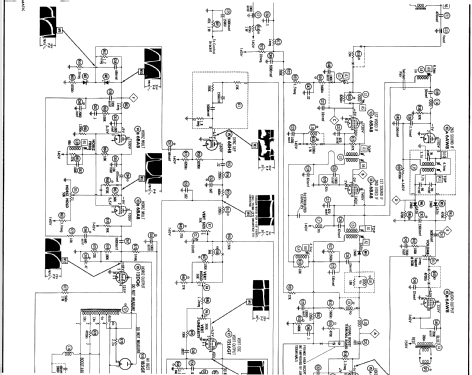

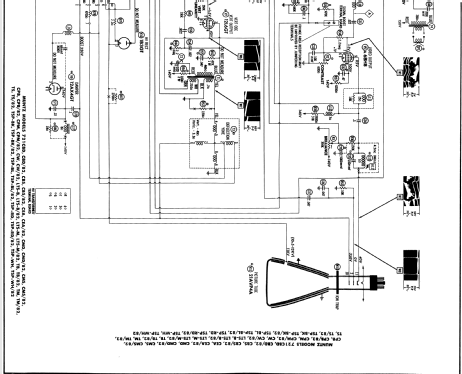

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Television Receiver 721CPM/82 [VHF/UHF Tuner PR-0253] - Muntz TV Inc.; Hollywood CA
  • Shape
  • Console with any shape - in general
  • Notes

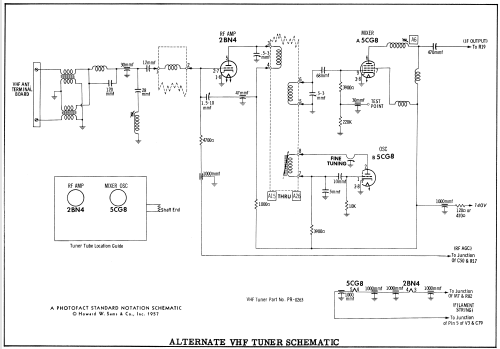

  • The Muntz 721CPM/82 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Uses VHF/UHF tuner PR-0253 and picture tube 21AVP4A or 21XP4A. Cabinet color is mahogany.
