Silicon Detector No. 322
Murdock, WM.J. Co.; Chelsea
- Country
- United States of America (USA)
- Manufacturer / Brand
- Murdock, WM.J. Co.; Chelsea
- Year
- 1914 ?
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 244162
-
- alternative name: William J. Murdock Co.

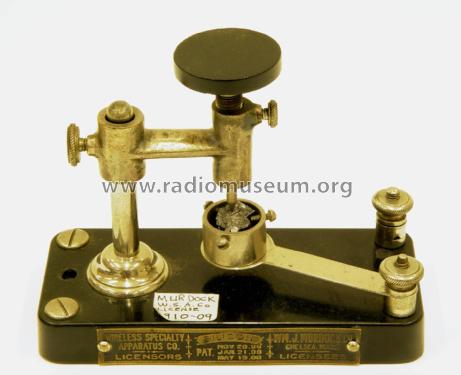

Collection privée (réf.: 2191)
Collection privée (réf.: 2191)
Murdock Apparatus Catalog No. 12 page 22
- Main principle
- Crystal or Solid State Detector
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Silicon Detector No. 322 - Murdock, WM.J. Co.; Chelsea
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 4.5 x 3.375 x 2 inch / 114 x 86 x 51 mm
- Notes
-
Murdock Silicon Detector No. 322
- Price in first year of sale
- 4.50 USD
- Literature/Schematics (2)
- Murdock Apparatus Catalog No. 12 page 22
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
