A-8M {А-8М}

A-8M {А-8М}; Murom Radio Works (ID = 171509) Car Radio
A-8M {А-8М}; Murom Radio Works (ID = 2039114) Car Radio A-8M {А-8М}; Murom Radio Works (ID = 2039119) Car Radio
A-8M {А-8М}; Murom Radio Works (ID = 2039116) Car Radio A-8M {А-8М}; Murom Radio Works (ID = 2039117) Car Radio
A-8M {А-8М}; Murom Radio Works (ID = 2039118) Car Radio A-8M {А-8М}; Murom Radio Works (ID = 2039120) Car Radio
A-8M {А-8М}; Murom Radio Works (ID = 2039121) Car Radio A-8M {А-8М}; Murom Radio Works (ID = 2039122) Car Radio
A-8M {А-8М}; Murom Radio Works (ID = 171328) Car Radio A-8M {А-8М}; Murom Radio Works (ID = 171331) Car Radio
Use red slider bar for more.

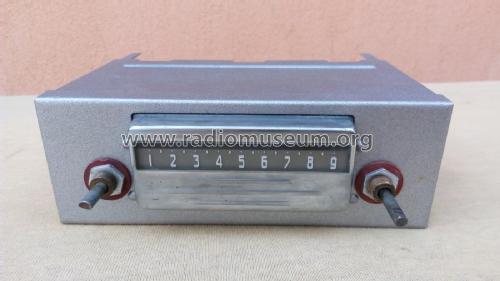

A-8M {А-8М}; Murom Radio Works (ID = 2039114) Car Radio
Murom Radio Works: A-8M {А-8М} [Car Radio] ID = 2039114 1400x788
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-8M {А-8М}, Murom Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Murom Radio Works
Year: 1956 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6А2П 6К4П 6Д6А or 6Х2П 6Ж3П 6П1П 6Ц4П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: A-8M {А-8М} - Murom Radio Works
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 202 x 72 x 202 mm / 8 x 2.8 x 8 inch
Notes Used vibropack changer "va-12,8" for anode supply. Complete with loudspeaker "3gd-4".
Radio set for russian car "Moskvich-400".
Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Source of data - - Data from my own collection
Mentioned in E.A.Levitin "Radio sets" Moscow 1967

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
