A124; Murphy Radio Ltd.; (ID = 445616) Radio
Murphy Radio Ltd.;: A124 [Radio] ID = 445616 933x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model A124, Murphy Radio Ltd.; Welwyn Garden City:

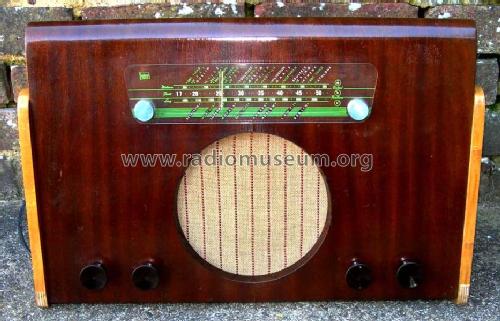

My 1948 Murphy A124 MW/LW/SW 3 valve plus rectifier radio. There is one identical to this exhibited at the Science Museum in London.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 10C1 10F9 Pen45DD U404
Main principle Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: A124 - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 20 x 12.7 x 8.25 inch / 508 x 323 x 210 mm
Notes "Baffle Board" design. Sockets for aerial, earth and extension loudspeaker. Released July 1948 price £16 10s 0d plus purchase tax.
Mentioned in -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.
