A146C

A146C; Murphy Radio Ltd.; (ID = 275250) Radio
A146C; Murphy Radio Ltd.; (ID = 2012621) Radio A146C; Murphy Radio Ltd.; (ID = 2012622) Radio
A146C; Murphy Radio Ltd.; (ID = 612758) Radio A146C; Murphy Radio Ltd.; (ID = 612759) Radio
A146C; Murphy Radio Ltd.; (ID = 1333416) Radio A146C; Murphy Radio Ltd.; (ID = 1333417) Radio
A146C; Murphy Radio Ltd.; (ID = 1333418) Radio A146C; Murphy Radio Ltd.; (ID = 1333419) Radio
A146C; Murphy Radio Ltd.; (ID = 1333420) Radio A146C; Murphy Radio Ltd.; (ID = 1424041) Radio
Use red slider bar for more.
A146C; Murphy Radio Ltd.; (ID = 2012621) Radio
Murphy Radio Ltd.;: A146C [Radio] ID = 2012621 1400x1737
Select picture or schematic to display from thumbnails on the right and click for download.
For model A146C, Murphy Radio Ltd.; Welwyn Garden City

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 10C1 10F9 10LD11 10LD11 Pen45 Pen45 UU6
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25.5 cm = 10 inch
Power out
from Radiomuseum.org Model: A146C - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 660 x 820 x 230 mm / 26 x 32.3 x 9.1 inch

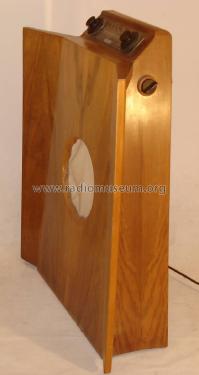

Notes Murphy's first baffle console radio.
Net weight (2.2 lb = 1 kg) 35 lb (35 lb 0 oz) / 15.890 kg
Price in first year of sale 35.00 GBP
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
