• Country
• Great Britain (UK)

• Manufacturer / Brand
• Murphy Radio Ltd.; Welwyn Garden City

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96840

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6C9_UK 6F15 6LD20 6LD20 6P25 6P25 UU6

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25.5 cm = 10 inch

• Material
• Wooden case

• from Radiomuseum.org

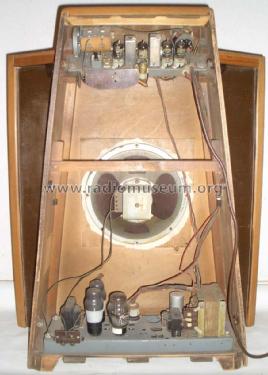

• Model: A146CM - Murphy Radio Ltd.; Welwyn

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 660 x 820 x 230 mm / 26 x 32.3 x 9.1 inch

• Notes
• Staleman calls it (in error) A146C.

• Price in first year of sale
• 445.00 Hfl

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by John Koster. See "Data change" for further contributors.
